ET-01 beta
KingSword
Model: ET-01 beta

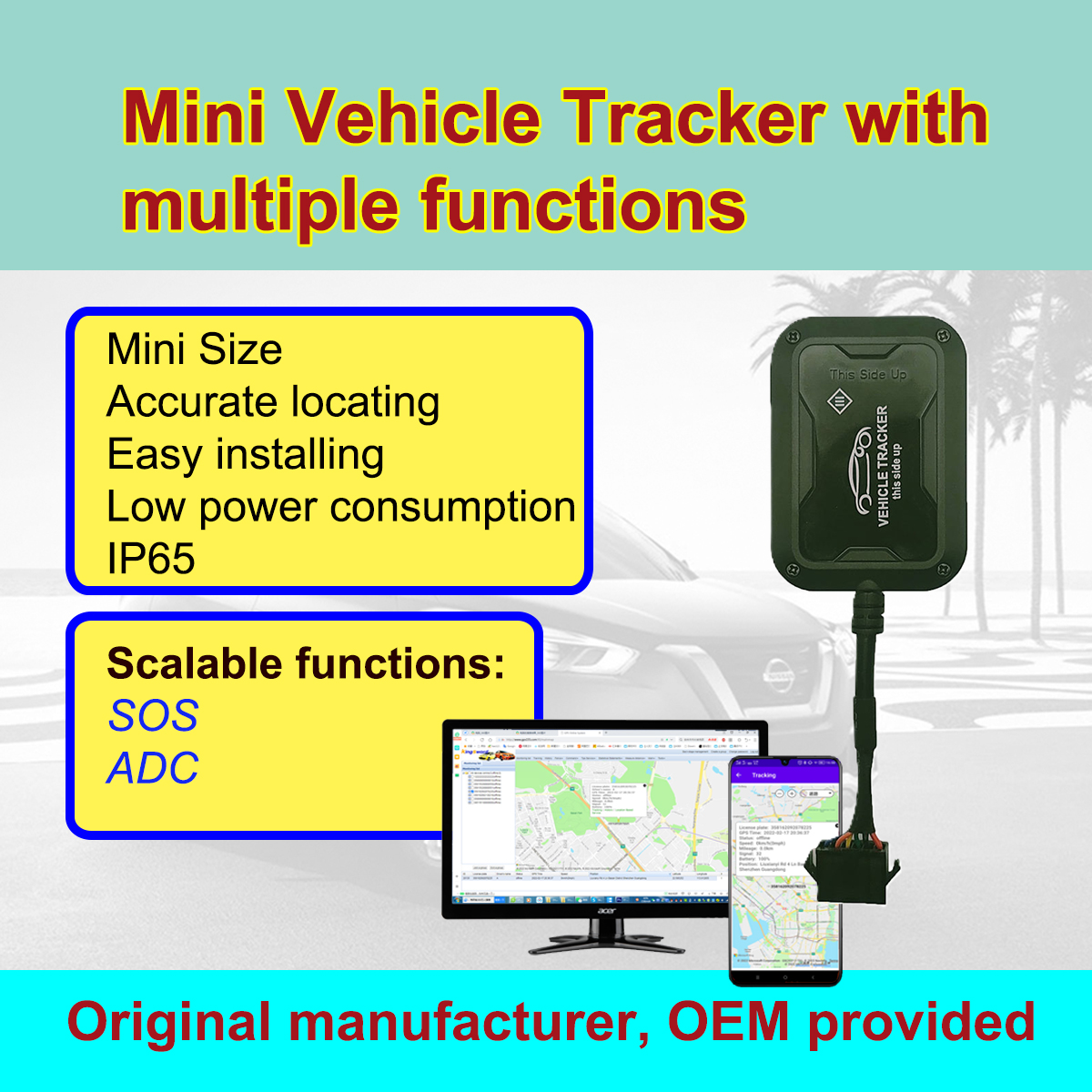

ET-01 beta is an advanced version based on ET-01 for vehicle tracking, which could support more I/Os and more functions demands, and could select waterproof version.
Application fields:
Vehicle Tracking, Auto Finance, Logistics, Fleet management
############################################################
Detail Specification
-Size: 42*60*17.5mm
-Working Voltage: DC: 6~30V (8~60V optional)
-GSM & GPRS features:
Quad band 850/900/1800/1900MHz
-GPS features:
Positioning precision: <5~10 m
-Lowest power consumption: 1~4mA
Main features and functions
-Small size and easy installing
-Support GPS, BDS and GLONASS
-Fast and accurate locating
-Static drift prevention
-Store data automatically when no GPRS communication
-Built-in battery (240mAh)
-Low power consumption
-Waterproof (optional)
-SMS and online tracking
-Driving history playback
-Geo fence
-Engine ignition detecting
-Remote control engine power
-External power cut alarm
-Vibration & movement alarm
-Over speed alarm
-SOS alarm (optional)
-ADC: Read external power voltage (optional)
Specification
size | 42*60*17.5mm |
Working Voltage | DC:6~30V |
Input Fuse | 2A |
Working Temperature | -40~85°C |
Humidity | 10% to 90% |
CPU | MT6261D(260MHz) |
GSM & GPRS features | Highly precise and low noise RF transmitter for GSM/GPRS applications Transmitter outputs support quad bands: 850/900/1800/1900MHz GPRS class 12
|
GPS features
| BDS/GPS/GLONASS supportable Fast acquisition Low current consumption Tracking sensitivity: -162dBm Positioning precision: <5~10 m Speed measurement precision: <0.1m/s
|
I/O Port | 6 I/O cables 1. Positive 6V-30V. Red wire 2. Negative. Black wire 3. Output positive. Yellow wire 4. Input detection #1. Green wire 5. Output negative. Orange wire 6. Input detection #2. Blue wire Extra port: l ADC for power voltage reading l EINT for Negative input l TX for data transmission l RX for data receiving |
LED indication | Red for GPS Blue for GPRS |
Current (@12V) | Sleep mode: 1~4mA working Current: 25~50mA Charging current: 80~100mA |
Installation:
1. Red wire connects to positive 6V-30V。
2. Black wire connects to ground
3. Yellow wire connects to relay device pin86. Pin85 connects to ground. Pin 30 and 87A connect to oil pump line in series. (output #1)
4. Green wire connects to ACC or other alarm devices (that is to connect 6V-24V storage battery or impulse to access ACC and alarm mode) (input #1)
5. Orange wire connects for output negative (optional) (output #2)
6. Blue wire connects for input detection (optional) (input #2)
Main features:
1. Small size and easy installing
2. support GPS and Beidou system
3. Fast and accurate locating
4. static drift suppression
5. Store data automatically when no GPRS communication
6. Built-in battery (support 3 hours working time after external power is off)
7. Low power consumption
8. Built-in reset controller ensures system not get stuck
9. Support UDP & TCP communication
10. IP65
Main functions:
l Basic functions:
Position query
Alarm modes
Geo fence
Engine ignition detection
Remote control engine power
Mileage query and correction
Power saving mode
SOS (optional)
Audio monitoring (optional)
l Settings:
Data upload interval
Time zone
Car plate name
SMS & GPRS switch
Alarm SMS switch
DNS
IP & port
TCP & UDP switch
l Alarms:
External power off alarm
Vibration alarm
Movement alarm
Geo fence alarm
Over speed alarm
Low battery level alarm
SOS alarm (optional)
Car door open alarm (optional)
l Power saving mode:
Sleep by time
Wake up by shock sensor
l Checkings:
Firmware version
SIM card ICCID
Device working status
IMEI
l Other functions:
Automatic update positions of vehicle turns
Device reboot
Virtual ignition by sensor
l Network functions:
PC web/APP tracking
Real time tracking
Alarm record
History play back
Packaging detail:
Tracking device
Power cable
User manual
Gift box
Optional accessories:
Relay
