ET-60W
KingSword
Model: ET-60W

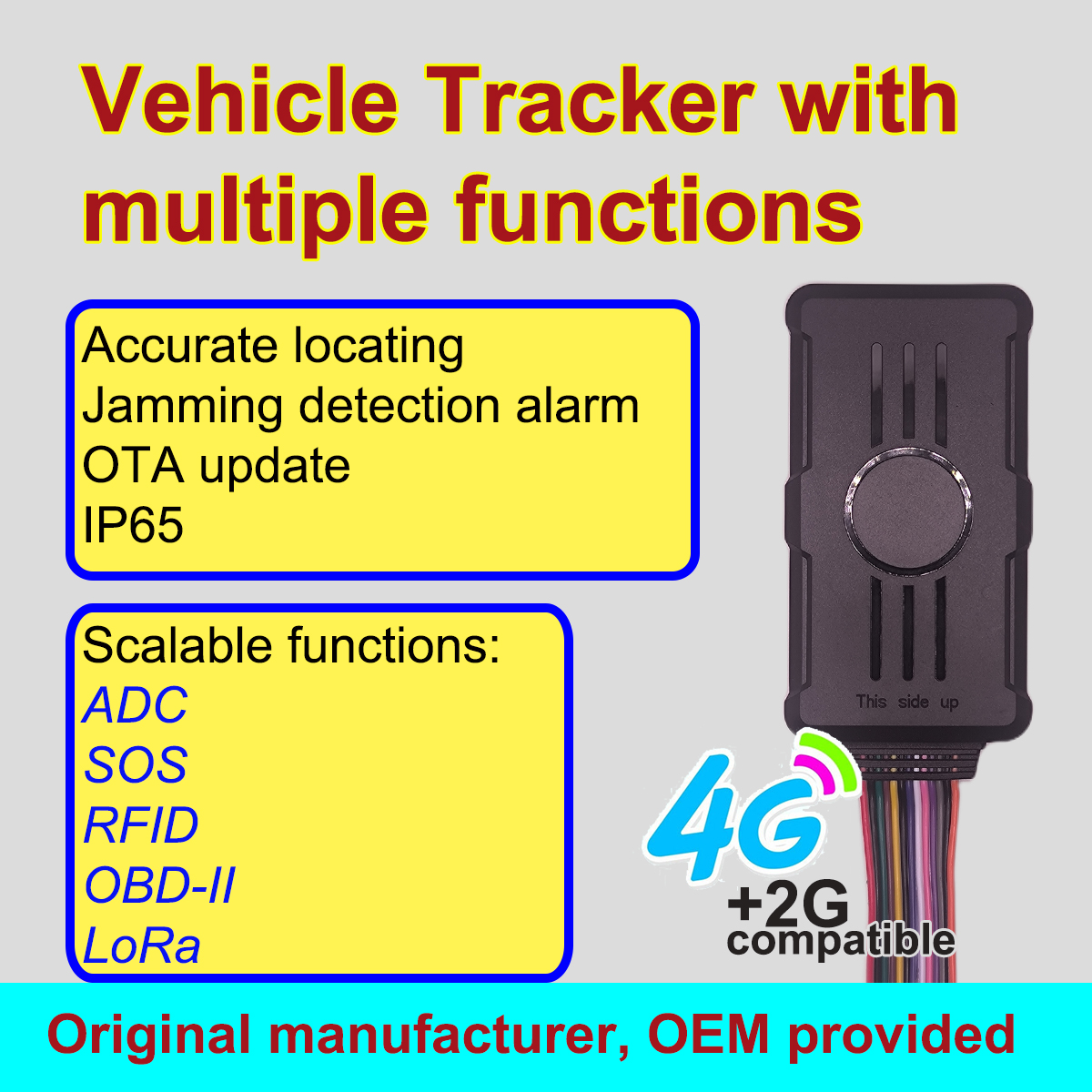

ET-60W is a 4G vehicle tracker with multiple functions, ideal for logistic management or public transport vehicles
Application:
Fleet management, Fuel Monitoring & Control, Stolen Vehicle Recovery, Auto Finance, Public Transport
Specification
-Size: 93*50*20mm
-Working Voltage: DC 8~100V
-Frequencies:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: 850/900/1800/1900MHz
-GPS features:
Positioning precision: <5~10 m
-Lowest power consumption: 1~3mA
Main features and functions
-Support GPS, BDS and GLONASS
-Fast and accurate locating
-Static drift prevention
-Store data automatically when no GPRS communication
-Built-in battery (600mAh)
-Low power consumption
-Waterproof
-SMS and online tracking
-Driving history playback
-Engine ignition detecting
-Remote control engine power
-External power cut alarm
-Vibration & movement alarm
-Over speed alarm
-Jamming detection alarm
-ADC
-SOS alarm (optional)
-Temperature monitoring (optional)
-Fuel level monitoring (optional)
-RFID (optional)
-LoRa (optional)
-OBD (optional)
###########################################################
Detail Specification
size | 93*50*20mm |
Working Voltage | DC:8~100V |
Input Fuse | 2A |
Working Temperature | -20~75°C |
Humidity | 10% to 90% |
CPU | EC600U-EU |
GPS features | Re-acquisition sensitivity: -160dBm Tracking sensitivity: -162dBm Accuracy of locating: 2~10 meters Accuracy of speed calculation: <0.1m/s Updating rate of locating: 1~5Hz |
I/O Port | Standard: 4 cables connection: (standard) 1. Positive 8V-100V. Red wire 2. Negative. Black wire 3. Input detection. Green wire 4. Output negative. Brown wire
Extensive connections: (optional) l SOS l GND l 4.2V power supply l RX l TX l Input detection #2 l ADC (read power voltage) l GND l Output negative |
Current (@12V) | Sleep mode: 2~4mA working Current: 25~50mA
|
Frequency bands:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: 850/900/1800/1900MHz
Installation:
1. Red wire connects to positive 8V-100V。
2. Black wire connects to ground
3. Green wire connects to ACC or other alarm devices (that is to connect 8V-60V storage battery or impulse to access ACC and alarm mode)
4. Brown wire connects to relay device. (should select relay according to vehicle battery voltage)
Extensive connections supports OBD adaptor, RFID, external Lora, fuel sensor, etc
Main features:
-Support GPS, BDS and GLONASS
-Fast and accurate locating
-Static drift prevention
-Store data automatically when no
GPRS communication
-Built-in battery (600mAh)
-Low power consumption
-Waterproof
-Firmware update OTA
Main functions:
l Basic functions:
Position query
Alarm modes
Geo fence
Engine ignition detection
Remote control engine power
Mileage query and correction
Power saving mode
SOS (optional)
l Settings:
Data upload interval
Time zone
Car plate name
SMS & GPRS switch
Alarm SMS switch
DNS
IP & port
TCP & UDP switch
l Alarms:
External power cut alarm
Vibration alarm
Movement alarm
Geo fence alarm
Over speed alarm
Low battery level alarm
Jamming detection alarm
SOS alarm (optional)
l Power saving mode:
Sleep by time
Wake up by shock sensor
l Checkings:
Firmware version
SIM card ICCID
Device working status
IMEI
l Network functions:
PC web/APP tracking
Real time tracking
Alarm record
History play back
l Other functions:
ADC (read power voltage)
Temperature monitoring (optional)
Fuel level monitoring (optional)
RFID (optional)
LoRa (optional)
OBD (optional)

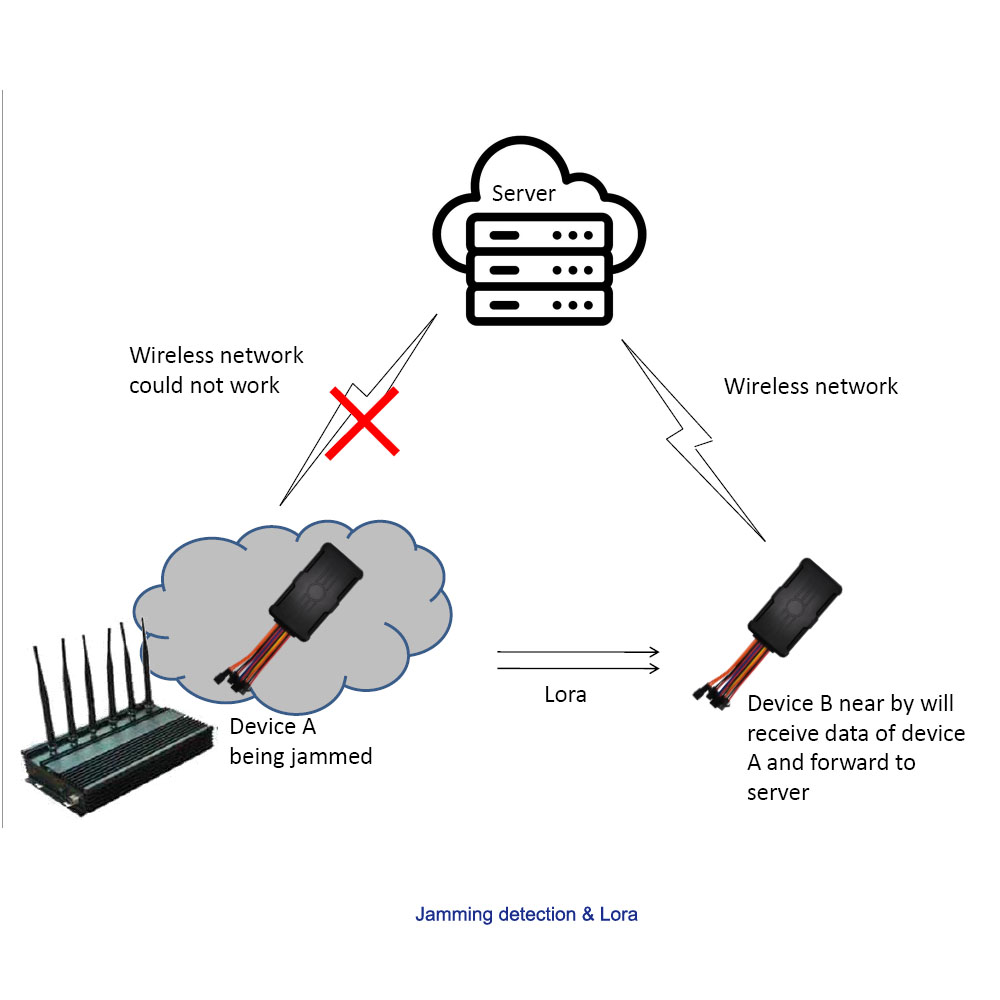

*Lora function: when device is being jammed by signal jammer and could not connect to server, the device will activate Lora function, to send data to a nearby device via Lora signal
*OBD function: device could connect an OBD adaptor and read related vehicle data from OBD port
Data content:
- Vehicle battery voltage
- Engine RPM
- Speed
- Engine load
- ECT coolant temperature
- Fuel level remain
- Mileage
- Car engine status
- Fault codes
