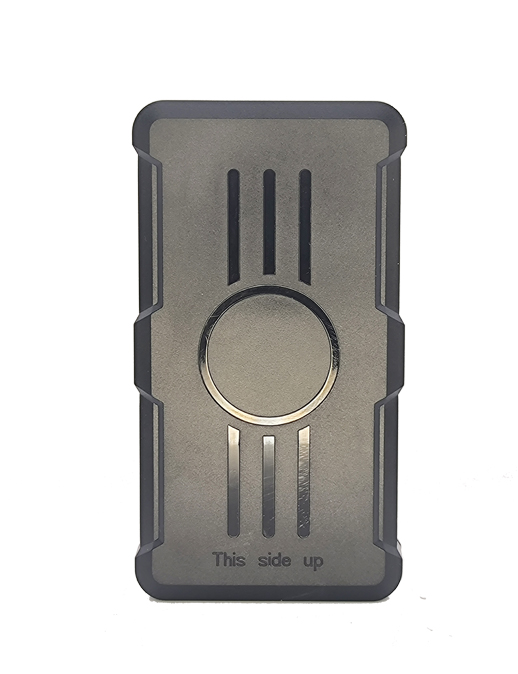

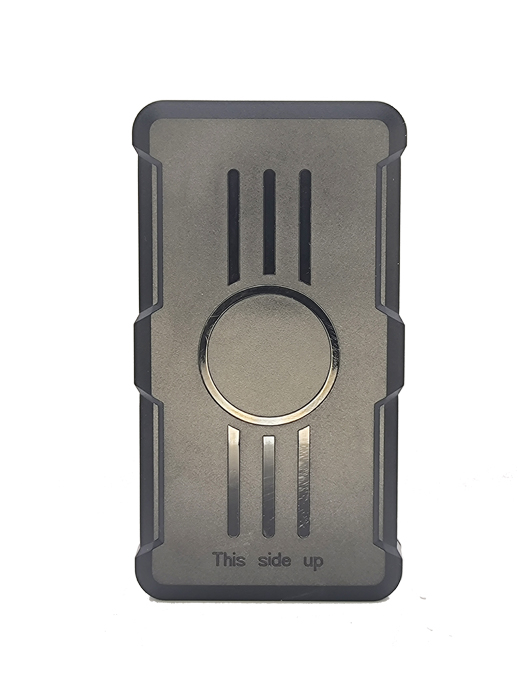

ET-69 Mini Asset portable Tracker Long Standby Portable Locator for Luggage

Specification

size	Size:  93*50*20mm
Input	DC: DC 5V/2A
Working Temperature	-20~75°C
Humidity	10% to 90%
CPU	EG800G-EU   (for Europe, Middle East, South America, Africa) EC800M-CN (for   China, India, south and east Asia mainly) EG800Q-NA   (for North America mainly) EG800G-LA   (for Latin America)
GPS features	Re-acquisition sensitivity: -160dBm Tracking sensitivity: -162dBm Accuracy of locating: 2~10 meters Accuracy of speed calculation: <0.1m/s Updating rate of locating: 1~5Hz
Lowest consumption	Below 1mA

Frequency bands:

B1/ 3/ 5 /7/ 8/ 20/ 28 (-EU)

B1/ 3/ 5/ 8/ 34/ 38/ 39/ 40/ 41 (-CN)

B2/ 4/ 5/ 12/ 13/ 66 (-NA)

B2/ 3/ 4/ 5/ /7 /8 /28/ 66 (-LA)

*EU: for some regions in Europe, Middle East, South America, Africa, Asia, Australia

*CN: for China, India, south and east Asia mainly

*NA: for North America mainly

*LA: for Latin America mainly

-----------------------------------------------

Main features:

1.    Charging via: 5V DC

2.    Support GPS and Beidou system

3.    Fast and accurate locating

4.    Static drift suppression

5.    Store data automatically when no GPRS communication

6.    Long time standby (battery capacity: 3000 mah)

7.    Intelligent power saving

8.    Firmware update OTA

Main functions:

l  Basic functions:

      Position query

      Alarm modes

      Geo fence

      Mileage query and correction

      Power saving mode

l  Settings:

      Data upload interval

      Time zone

      SMS & GPRS switch

      Alarm SMS switch

      DNS

      IP & port

      TCP & UDP switch

l  Alarms:

      Vibration alarm

      Geo fence alarm

      Over speed alarm

      Low battery level alarm

l  Power saving mode:

      Sleep by time

      Wake up by shock sensor

l  Checkings:

      Firmware version

      SIM card ICCID

      Device working status

      IMEI

l  Network functions:

      PC web/APP tracking

      Real time tracking

      Alarm record

      History play back

Packaging detail:

Tracking device

Charging cable

User manual

package box

Optional accessories:

Power adapter (5V 2A)
