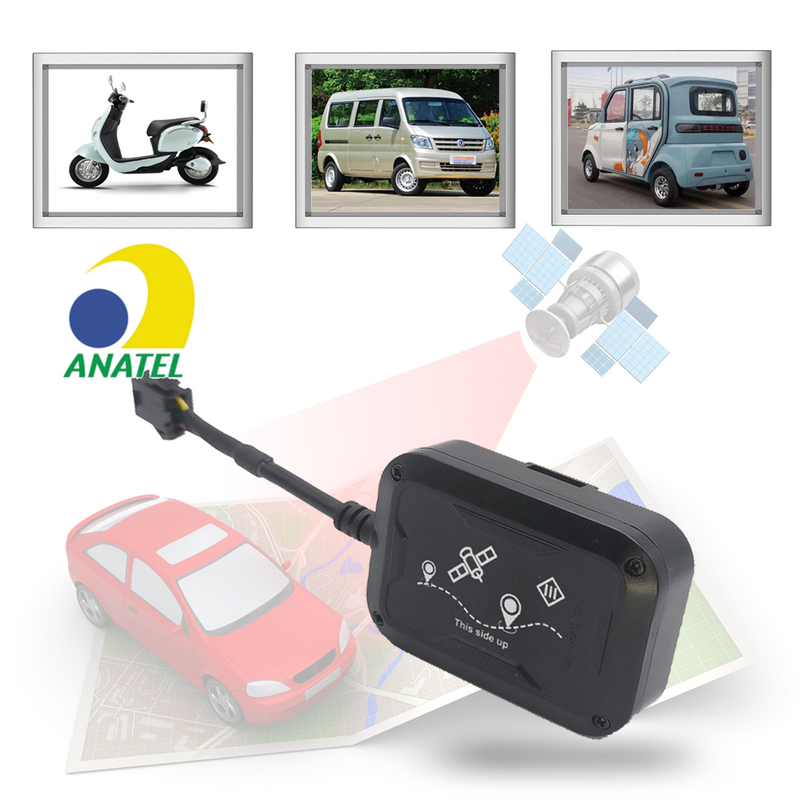

ET-80x 4g mini vehicle tracker Anatel

Model: ET-80 EU

ET-08x  is a mini 4g device for vehicle tracking, which meets most customer's basic function demands. It has Europe regulation as well as North America regulation for options.

Application fields:

Vehicle Tracking, Auto Finance, Logistics, Fleet management

Specification

size	42*60*17.5mm
Working Voltage	DC: 8~90V
Input Fuse	2A
Working Temperature	-20~75°C
Humidity	10% to 90%
CPU	EG800G-EU   (for Europe, Middle East, South America, Africa) EG800Q-NA   (for North America mainly) EG800G-LA   (for Latin America)
GPS features	Re-acquisition sensitivity: -160dBm Tracking sensitivity: -162dBm Accuracy of locating: 2~10 meters Accuracy of speed calculation: <0.1m/s Updating rate of locating: 1~5Hz
I/O Port	Standard: 4 cables connection: (standard) 1.       Positive 8V-100V. Red wire 2.       Negative. Black wire 3.       Output negative. Yellow wire 4.       Input detection. Green wire Optional: -  SOS
Current (@12V)	Sleep mode: 2~4mA working Current: 25~50mA

Frequency bands:

LTE-FDD: B1/ 3/ 5 /7/ 8/ 20/ 28 (-EU)

LTE-FDD: B2/ 4/ 5/ 12/ 13/ 66 (-NA)

LTE-FDD: B2/ 3/ 4/ 5/ /7 /8 /28/ 66 (-LA)

*EU: for some regions in Europe, Middle East, South America, Africa, Asia, Australia

*NA: for North America mainly

*LA: for Latin America mainly

-----------------------------------------------

Installation:

1. Red wire connects to positive 8V-90V。

2. Black wire connects to ground

3. Yellow wire connects to relay device. (should select relay according to vehicle battery voltage)

4. Green wire connects to ACC or other alarm devices (that is to connect 8V-60V storage battery or impulse to access ACC and alarm mode)

Main features:

1.     Small size and easy installing

2.     Support GPS and Beidou system

3.     Fast and accurate locating

4.     Static drift suppression

5.     Store data automatically when no GPRS communication

6.     Built-in battery (support 5 hours working time after external power is off)

7.     Low power consumption

8.     Built-in reset controller ensures system not get stuck

9.     Support UDP & TCP communication

10.   IP65

Main functions:

l  Basic functions:

     Position query

     Alarm modes

     Geo fence

     Engine ignition detection

     Remote control engine power

     Mileage query and correction

     Power saving mode

     SOS (optional)

l  Settings:

     Data upload interval

     Time zone

     Car plate name

     SMS & GPRS switch

     Alarm SMS switch

     DNS

     IP & port

     TCP & UDP switch

l  Alarms:

     External power cut alarm

     Vibration alarm

     Movement alarm

     Geo fence alarm

     Over speed alarm

     Low battery level alarm

     SOS alarm (optional)

l  Power saving mode:

     Sleep by time

     Wake up by shock sensor

l  Checkings:

     Firmware version

     SIM card ICCID

     Device working status

     IMEI

l  Network functions:

     PC web/APP tracking

     Real time tracking

     Alarm record

     History play back

l  Optional functions:

     OBD

     Lora

     Blue tooth

*Lora function: when device is being jammed by signal jammer and could not connect to server, the device will activate Lora function, to send data to a nearby device via Lora signal

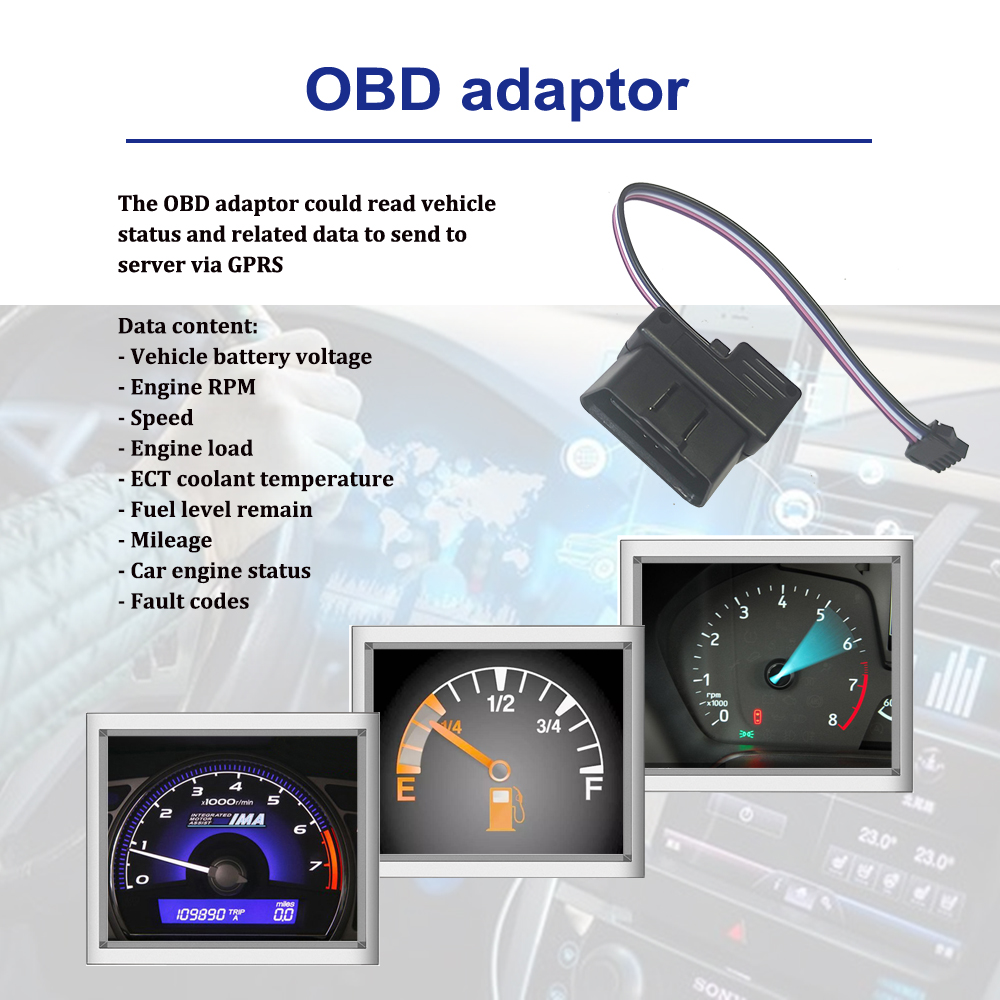

*OBD function: device could connect an OBD adaptor and read related vehicle data from OBD port

Data content:

- Vehicle battery voltage

- Engine RPM

- Speed

- Engine load

- ECT coolant temperature

- Fuel level remain

- Mileage

- Car engine status

- Fault codes

Optional function:

-to work with our OBD adaptor
